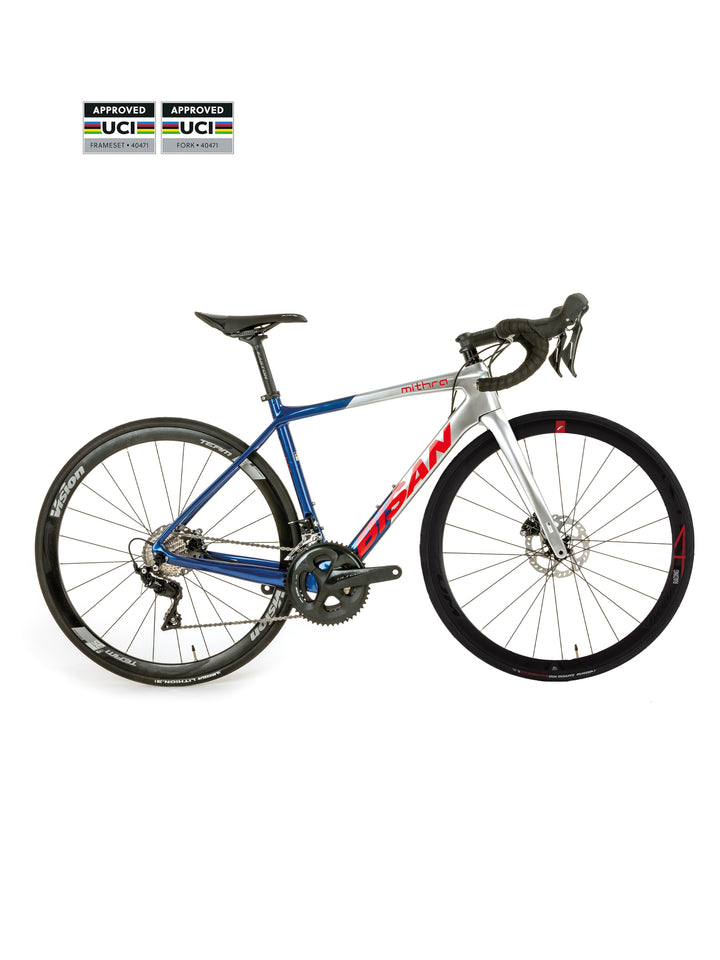

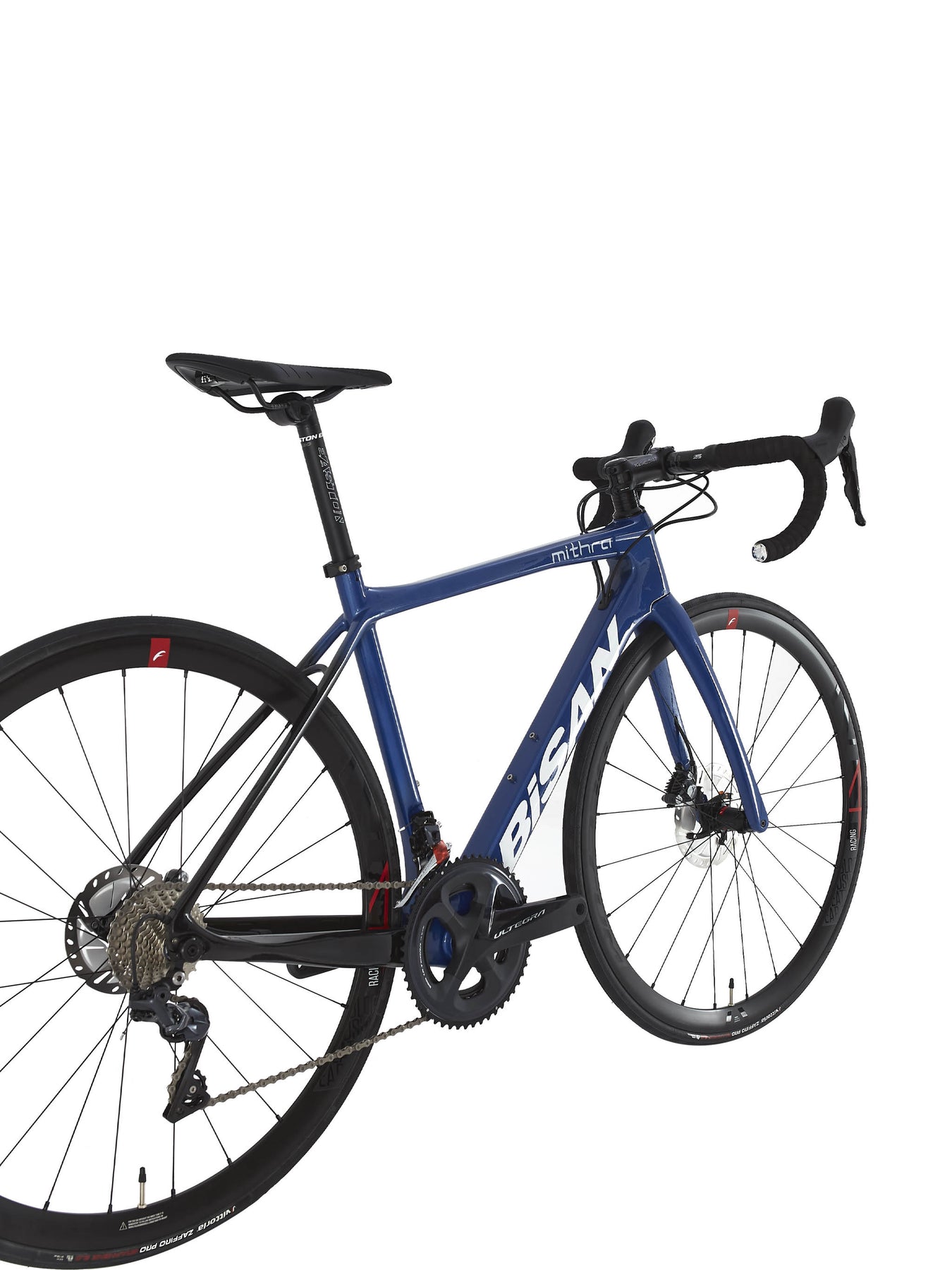

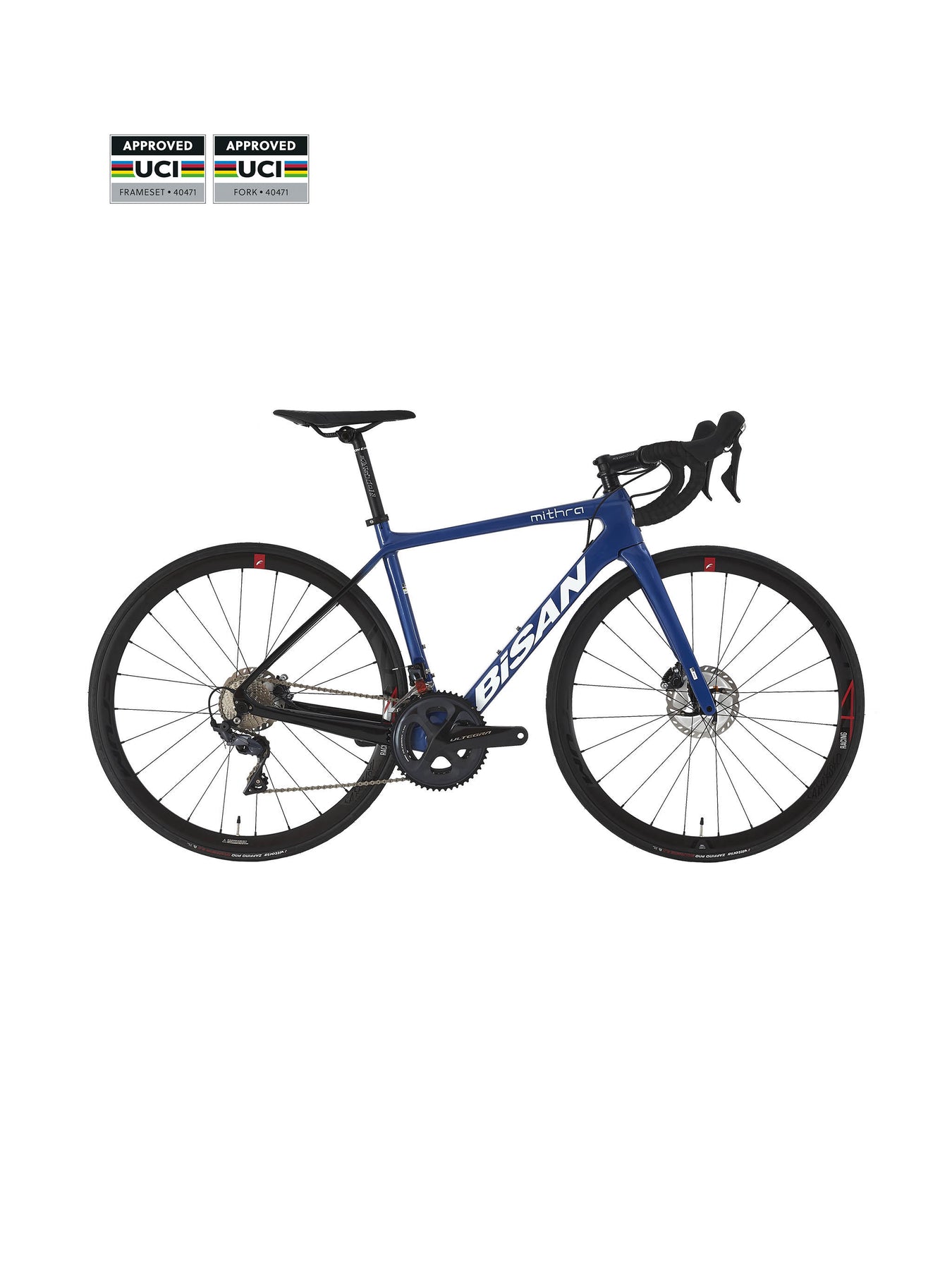

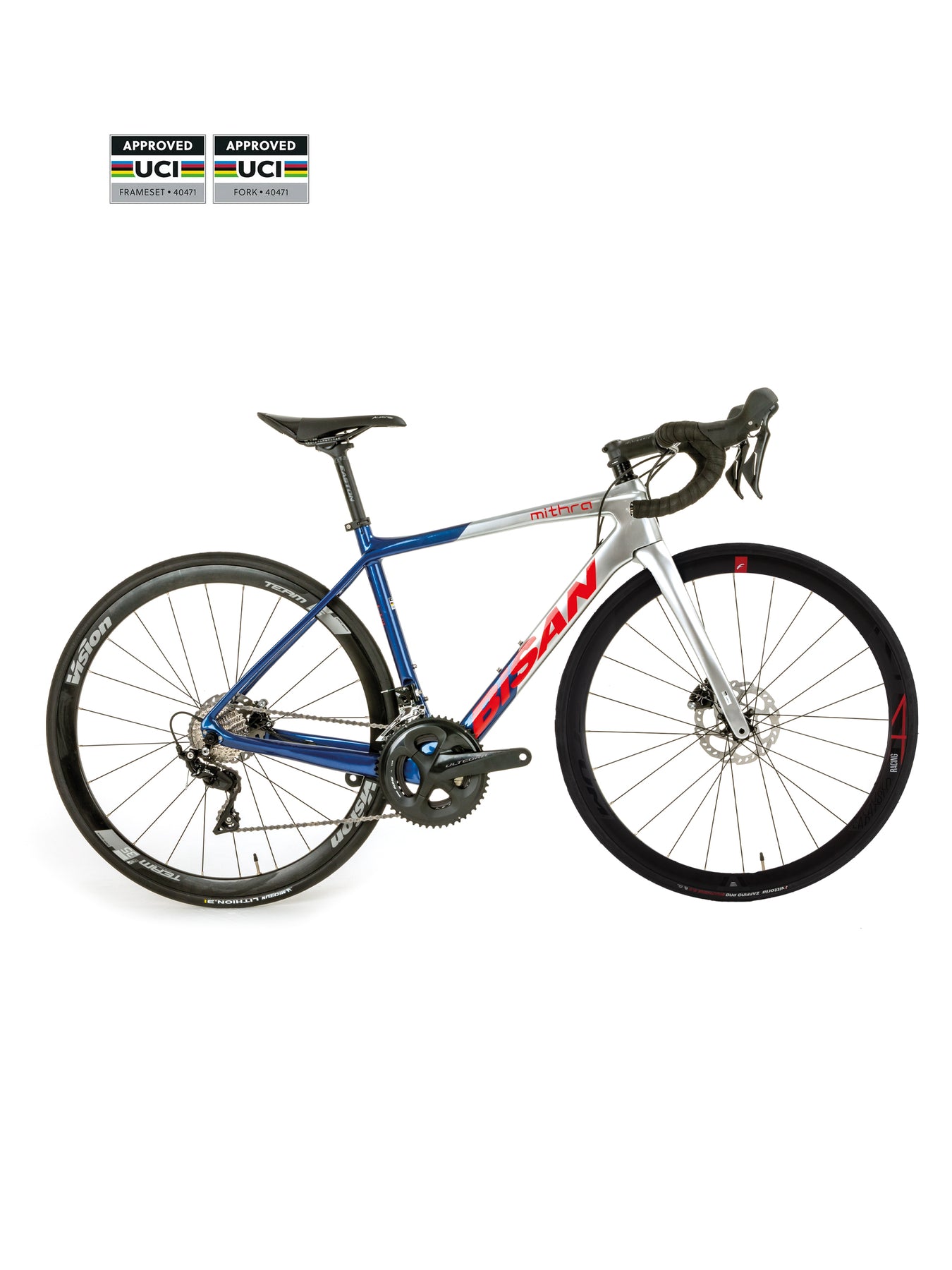

BİSAN MITHRA-DISC 105/DI2 700C JANT 58 CM KADRO 2X12 VİTES YOL BİSİKLETİ MOR SİYAH
KADRO/FRAME : Carbon
MAŞA/FORK : Carbon
FREN KOLLARI/BRAKE LEVERS : Shimano 105 ST-R7170
FREN SİSTEMİ/BRAKE : Shimano 105 BR-R7170
VİTES KOLLARI/SHIFTER LEVERS : Shimano 105 ST-R7170
ÖN AKTARICI/FRONT DERAILLEUR : Shimano 105 FD-R7150

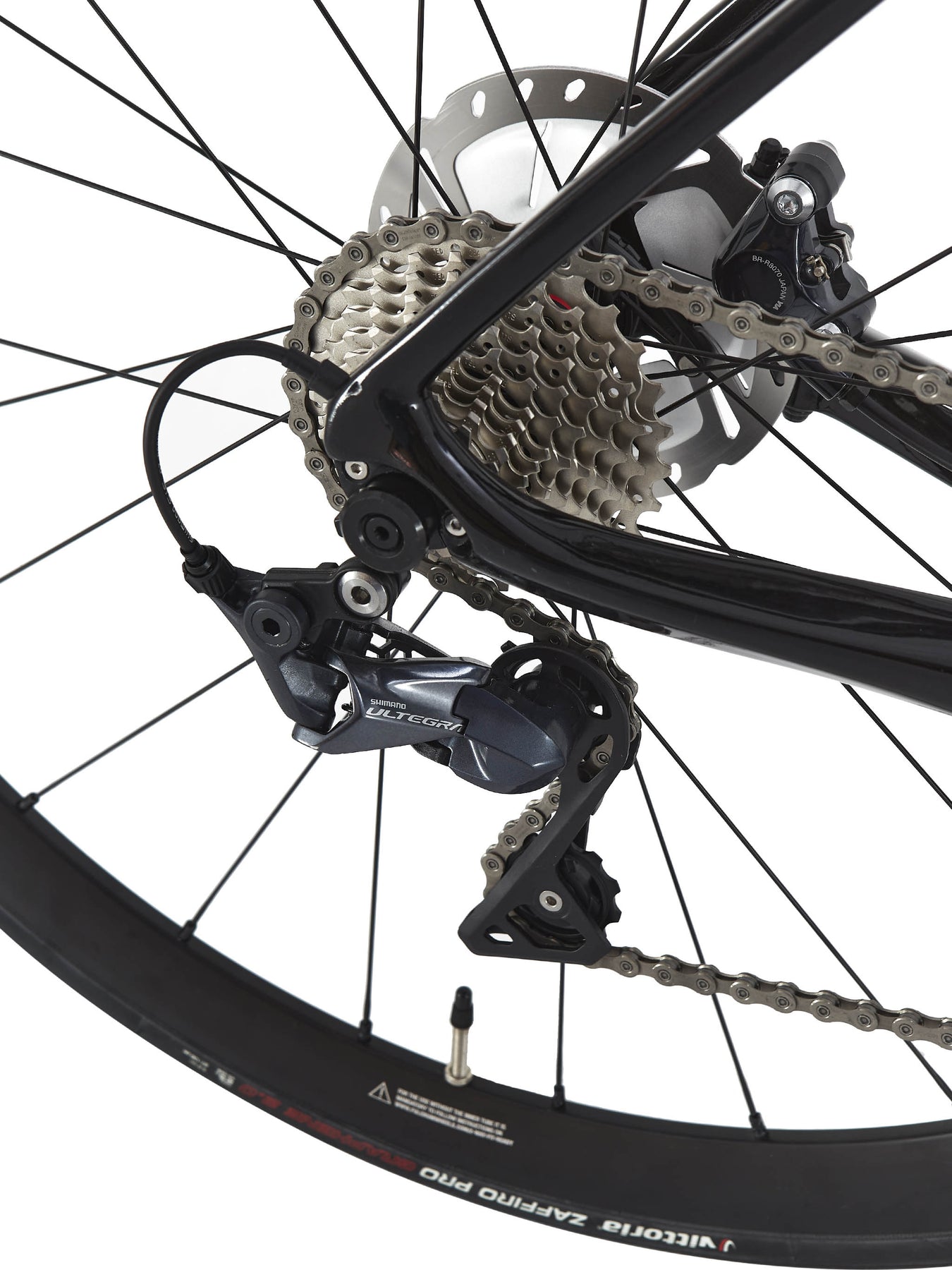

ARKA AKTARICI/REAR DERAILLEUR : Shimano 105 RD-R7150
AYNAKOL/CRANKSET : Shimano 105 FC-R710112 (52-36T)
RUBLE/CASSETTE : Shimano 105 CS-R710112 (12S) (11-34T)
ORTA GÖBEK/BOTTOM BRACKET : Shimano SM-BB72-41B
ZİNCİR/CHAIN : Shimano CN-M7100-12
ÖN JANT GÖBEĞİ/FRONT HUB : Shimano WH-RS370-TL
ARKA JANT GÖBEĞİ/REAR HUB : Shimano WH-RS370-TL
JANT TAKIMI/RIMS SET : Shimano WH-RS370-TL
GİDON/HANDLEBAR : Easton
GİDON BOĞAZI/STEM : Easton
FURŞ TAKIMI/HEAD SET : Neco
SELE/SADDLE : Selle Royal
SELE BORUSU/SEATPOST : Easton
LASTİK/TIRE : Michelin/Vittoria"
ÖLÇÜM SONUÇLARI |
SIZE |
|
|
48 cm |
51 cm |
54 cm |
56 cm |
58 cm |
A |
SEAT TUBE |
SELE BORUSU |
480 |
510 |
540 |
560 |
580 |
B |
SEAT TUBE ANGLE |
SELE BORUSU AÇISI |
74.5 |
74 |
74 |
73.5 |
73.5 |
C |
TOP TUBE LENGTH |
ÜST BORU UZUNLUĞU |
510 |
525 |
540 |
560 |
580 |
D |
HEAD TUBE LENGTH |
ALIN BORUSU UZUNLUĞU |
120 |
135 |
150 |
170 |
190 |
E |
HEAD TUBE ANGLE |
ALIN BORUSU AÇISI |
71.5 |
72 |
72.5 |
73 |
73.5 |
H |
WHEELBASE |
TEKER MESAFESİ |
964.6 |
970.8 |
982.8 |
993 |
1008.2 |
I |
CHAIN STAY LENGTH |
ÇEKİ BORUSU UZUNLUĞU |
408 |
408 |
408 |
408 |
408 |
J |
BOTTOM BRACKET DROP |
GÖBEK YATAK MESAFE |
72.5 |
72.5 |
70 |
70 |
70 |
K |
STACK |
ALIN BORU ÜST NOKTA-GÖBEK MESAFE |
522 |
538 |
551.5 |
572.3 |
593.2 |
L |
REACH |
ALIN BORU ÜST-GÖBEK MERKEZLER ARASI |
365.3 |
370.8 |
381.9 |
390.5 |
404.3 |
Q |
WHEEL SIZE |
TEKER BOYU |
700C |
700C |
700C |
700C |
700C |
