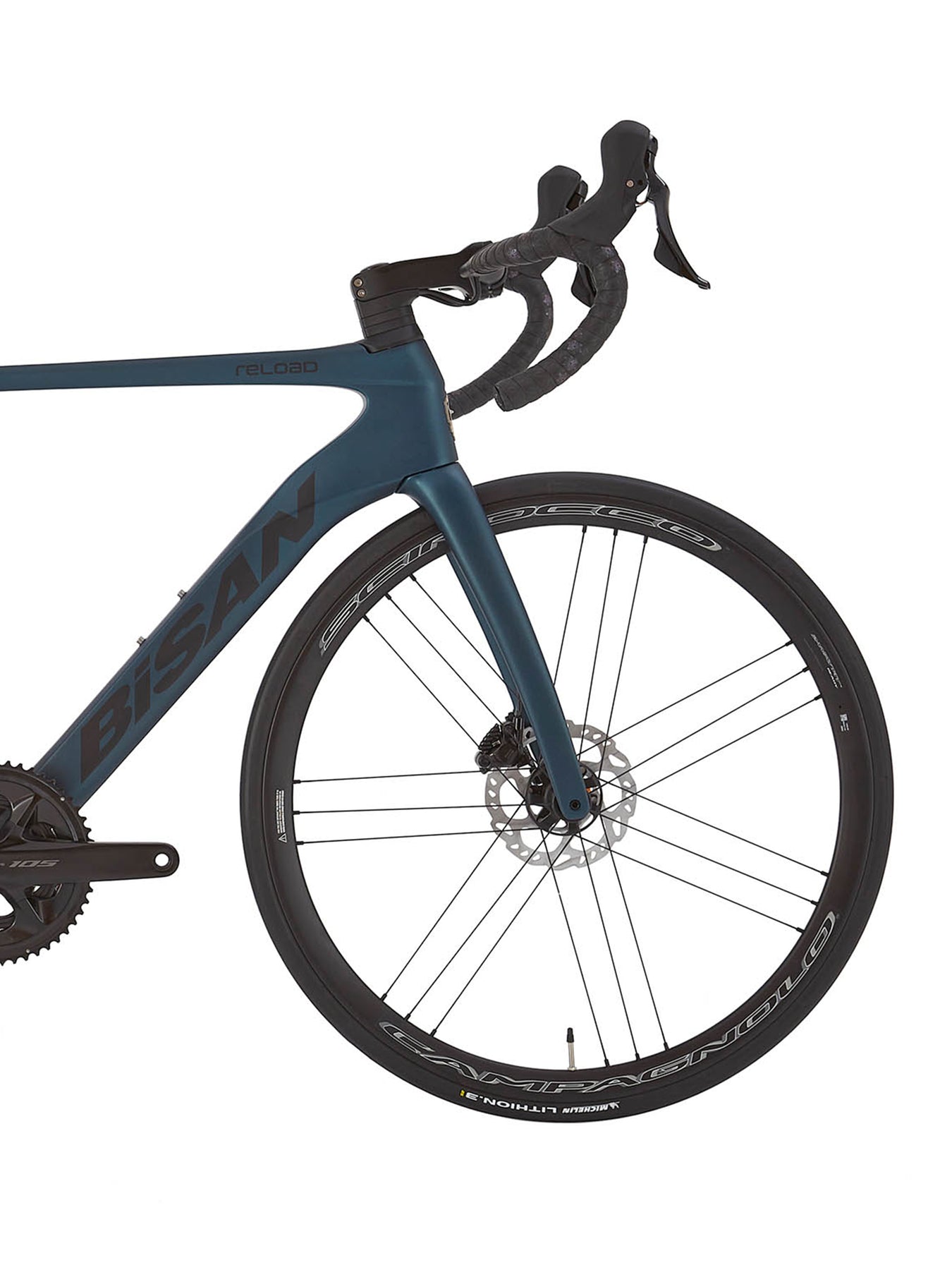

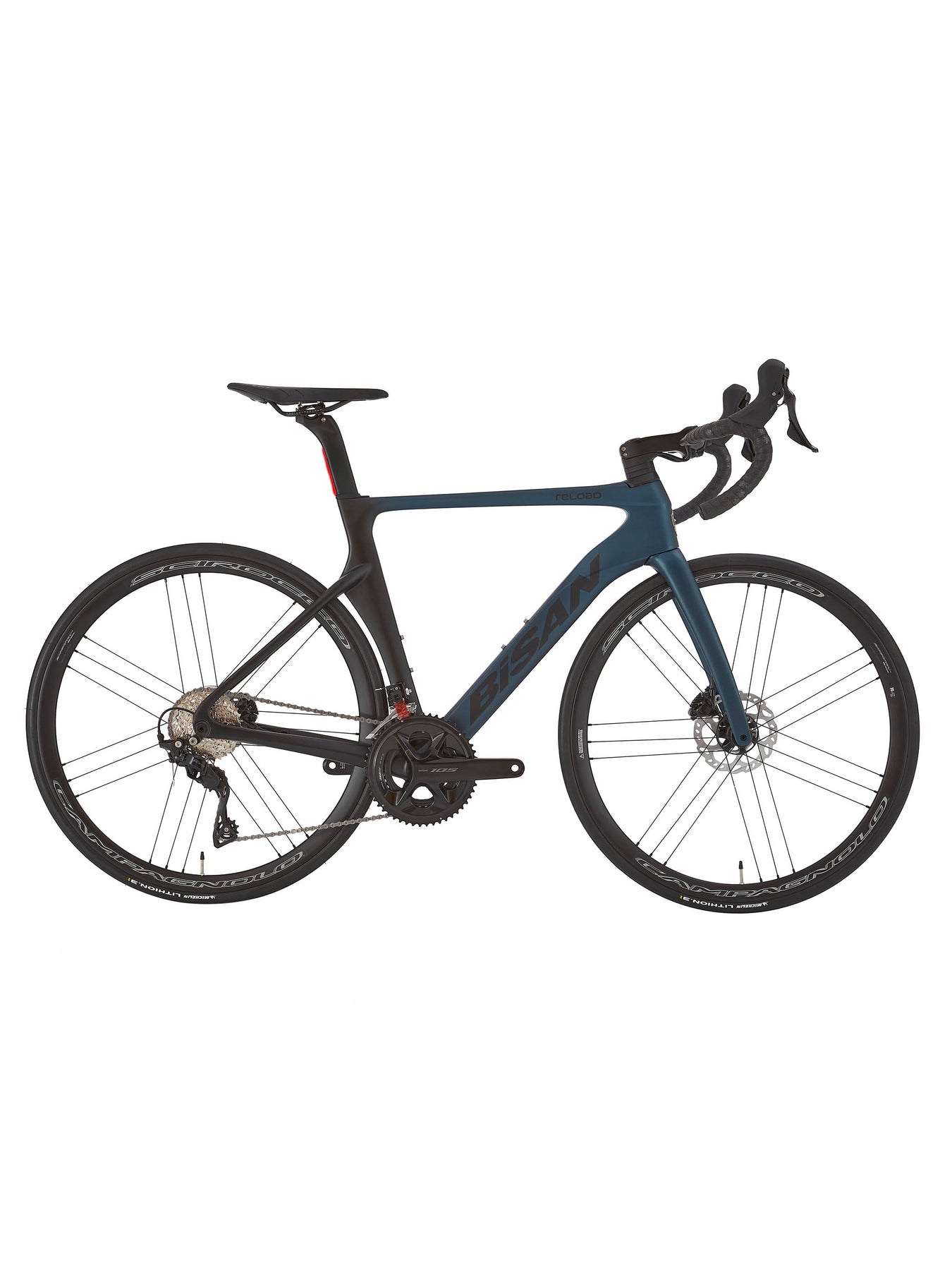

BİSAN RELOAD DISC 105 700C JANT 19" - 48 CM KADRO 2X11 VİTES YOL BİSİKLETİ MAT PETROL YEŞİLİ/SİYAH MAT PETROL YEŞİLİ/SİYAH
KADRO/FRAME : Carbon
MAŞA/FORK : Carbon
FREN KOLLARI/BRAKE LEVERS : Shimano 105 st-r7020
FREN SİSTEMİ/BRAKE : sıman 105 br-r7070
VİTES KOLLARI/SHIFTER LEVERS : Shimano 105 st-r7020
ÖN AKTARICI/FRONT DERAILLEUR : Shimano 105 fd-r7000
ARKA AKTARICI/REAR DERAILLEUR : Shimano 105 rd-r7000
AYNAKOL/CRANKSET : Shimano 105 fc-r7000 (52-36t)
RUBLE/CASSETTE : Shimano 105 cs-r7000 (11s) (11-28t)
ORTA GÖBEK/BOTTOM BRACKET :Shimano sm-bb72-41b
ZİNCİR/CHAIN : Shimano cn-hg601-11
ÖN JANT GÖBEĞİ/FRONT HUB : Campangnolo-scırocco db 2wf
ARKA JANT GÖBEĞİ/REAR HUB : Campangnolo-scırocco db 2wf
JANT TAKIMI/RIMS SET : Campangnolo-scırocco db
GİDON/HANDLEBAR : Easton
SELE/SADDLE : Fızık
SELE BORUSU/SEATPOST : Carbon
LASTİK/TIRE : Michelin/Vittoria
ÖLÇÜM SONUÇLARI |
SIZE |
|
|
48 cm |
50 cm |
52 cm |
54 cm |
56 cm |
58 cm |
A |
SEAT TUBE |
SELE BORUSU |
460 |
480 |
500 |
520 |
540 |
560 |
B |
SEAT TUBE ANGLE |
SELE BORUSU AÇISI |
75 |
74.5 |
74 |
73.5 |
73 |
72.5 |
C |
TOP TUBE LENGTH |
ÜST BORU UZUNLUĞU |
515 |
535 |
550 |
565 |
580 |
595 |
D |
HEAD TUBE LENGTH |
ALIN BORUSU UZUNLUĞU |
100 |
110 |
120 |
130 |
140 |
150 |
E |
HEAD TUBE ANGLE |
ALIN BORUSU AÇISI |
72 |
73 |
73 |
73 |
73.5 |
74 |
H |
WHEELBASE |
TEKER MESAFESİ |
967.5 |
974.4 |
984.7 |
995.6 |
999.6 |
1005.7 |
I |
CHAIN STAY LENGTH |
ÇEKİ BORUSU UZUNLUĞU |
408 |
408 |
408 |
408 |
408 |
408 |
J |
BOTTOM BRACKET DROP |
GÖBEK YATAK MESAFE |
70 |
70 |
70 |
70 |
70 |
70 |
K |
STACK |
ALIN BORU ÜST NOKTA-GÖBEK MESAFE |
512.3 |
527 |
539.5 |
549 |
560.2 |
568.7 |
L |
REACH |
ALIN BORU ÜST-GÖBEK MERKEZLER ARASI |
377.7 |
388.9 |
395.3 |
402.4 |
408.7 |
412.3 |
Q |
WHEEL SIZE |
TEKER BOYU |
700C |
700C |
700C |
700C |
700C |
700C |
